IRON

Level of professional
Line:
PROFESSIONAL Line
Category:
Pneumatic
Product type:
Harvesters

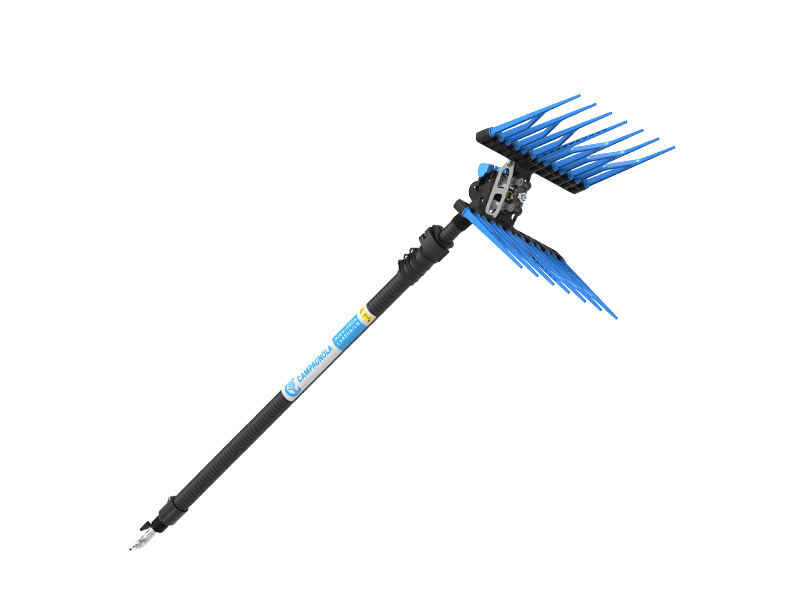

Iron is at the top of the Campagnola pneumatic harvesters range thanks to its efficacy and endurance when used intensively. It is the ideal tool for the most demanding operators who require high performances and total reliability. Several components have been made of steel or aluminium (piston) in order to guarantee a long-lasting performance. Carrying out 1500 strokes per minute, it is also effective in the presence of olives, which are hard to fall from the branches.

Icona Campagnola peso
Weight
1 kg
Icona Campagnola peso
Tot. Weight
1,690 kg
Icona Campagnola pressione
Pressure
8 bar
Icona Campagnola consumo aria
Air consumption
170 l/min
Icona Campagnola colture
Crops
olives which are hard to fall from the branches
Icona Campagnola velocità
Speed
1500 rpm
Icona Campagnola movimento
Movement
Opposed
Icona Campagnola apertura
Opening
24 cm
Icona Campagnola aste compatibili
Compatible rods
Aluminium and carbon extension poles
Technical table
CHARACTERISTICSIRON
MAX PRESSURE8 bar
AIR CONSUMPTION170 l/min
SPEED1500 rpm
WEIGHT*1,690 kg
*With 200 cm carbon fixed extension pole

Other technical details

Conveyor which directs the exhaust air towards the moving parts to keep them constantly lubricated and refrigerated

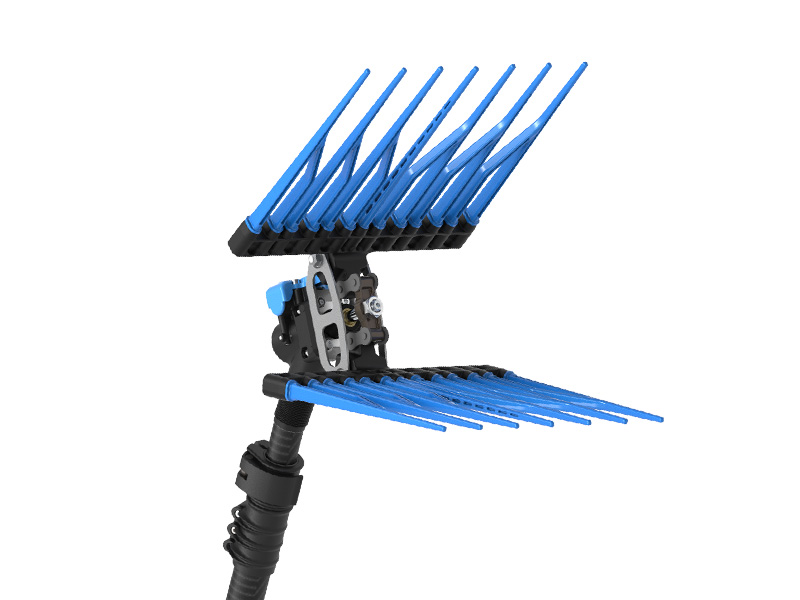

Carbon-reinforced technopolymer rakes with long half-tune-fork-shaped teeth (PATENTED DESIGN by CAMPAGNOLA)
Stainless Steel rakes support
Fixed and telescopic extension poles made of carbon or aluminium
Magnesium alloy frame to reduce the tool freezing issue
Included in the box

INCLUDED WITH IRON

  • Baseball cap for free
Advantages
GREAT SPEED AND POWER
1500 strokes at only 8 bar
RELIABILITY
Designed for an intensive and long-lasting use
HANDINESS
The half-tune-fork-shaped teeth allow to easily move the tool among the branches
EFFECTIVENESS
Excellent results with any type of plantings and cultivars
