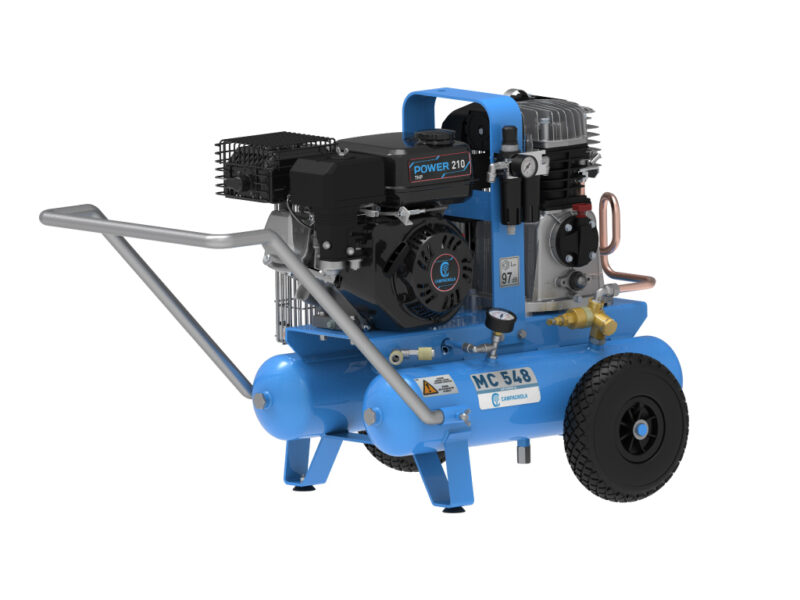

MC 548

Level of professional

Designed to operate 2 or 3 harvesters, it is supplied only in kit. It is recommended for a semi-professional use.

Icona Campagnola peso
Weight
69,9
Icona Campagnola pressione
Pressure
9/11 bar max
Icona Campagnola aria aspirata
Intake air
554 l/min
Icona Campagnola dimensioni
Size
76x64x69 cm
Icona Campagnola alimentazione
Power supply
Campagnola gasoline engine motor
Icona Campagnola capacità serbatoio
Tank capacity
11+11 l
Icona Campagnola quantità forbici
Amount of plug-in scissors
3
Icona Campagnola quantità abbacchiatori
Amount of plug-in harvesters
2/3
Description

Description

Technical table
CHARACTERISTICSMC 548 CAMPAGNOLA EHR210 7HP
AIR DISPLACEMENT554 l/min
CYLINDERS QUANTITY2
STAGES QUANTITY1
AIR TANK CAPACITY11+11 l
MAXIMUM TANK WORKING PRESSURE9/11 bar max
DIMENSIONS 76x64x69 cm
TOTAL WEIGHT69,9 kg

Other technical details

Double tank to separate air and water and to avoid tool freezing
12 bar homologated tanks (the homologated pressure has to be higher than the working pressure)
Campagnola gasoline engine motor
Automatic self-regulating device for the engine rpm. It accelerates or slows down the engine according to the air need, drastically reducing the consumptions
1/4” and 3/8” anti-condensation filter with pressure regulator and lubricator
Fiac or Fini or Abac head blocks
Copper hoses for a better heat dispersion
Automatic pilot valve/unloader
Included in the box

INCLUDED WITH MC 548

  • Vest for free
