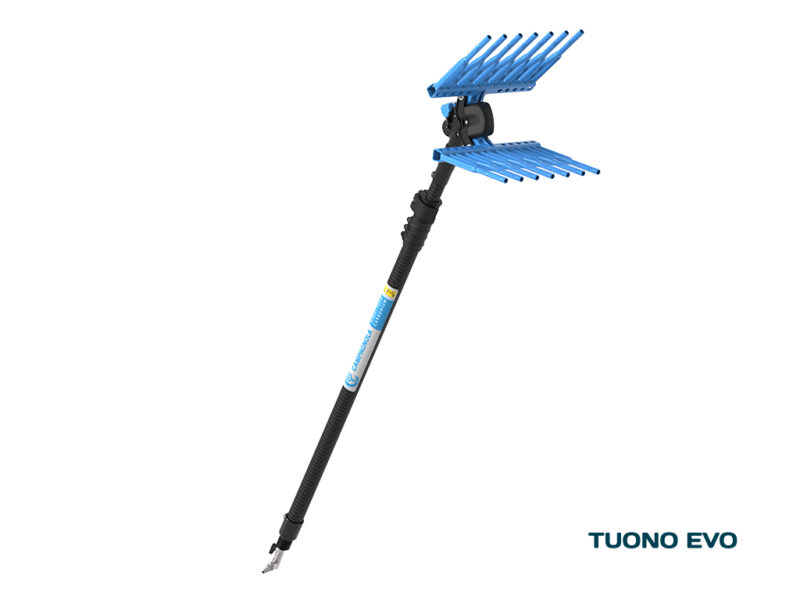

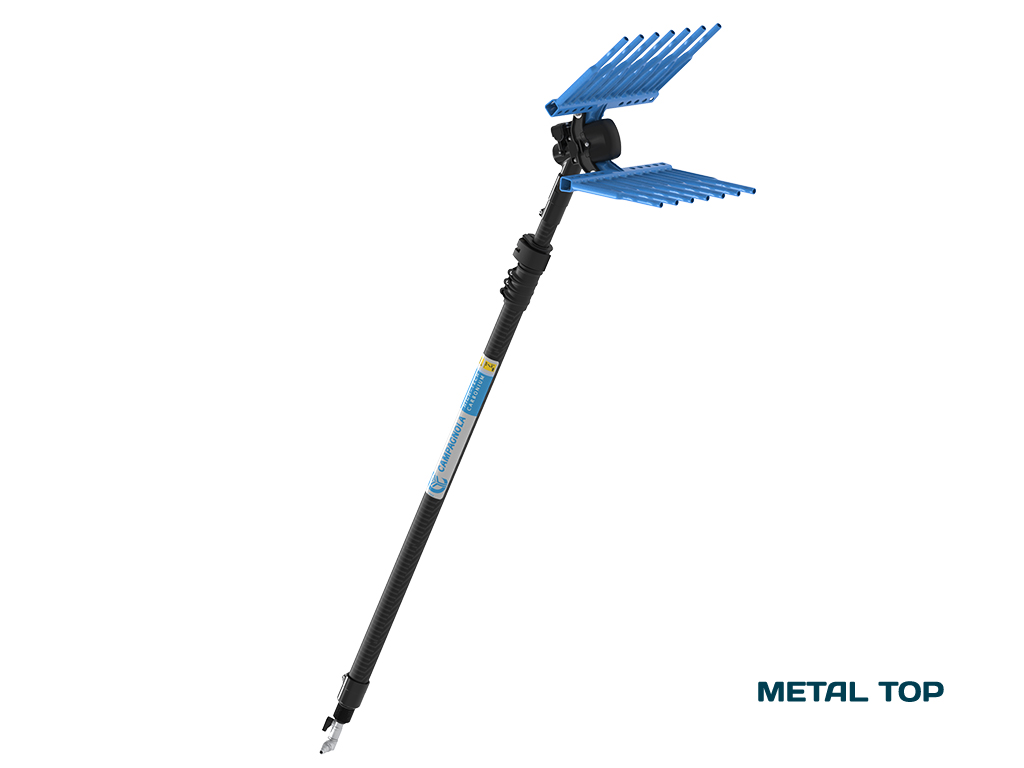

TUONO EVO and METAL TOP

Level of professional

These are the most popular pneumatic harvesters by Campagnola. They are the ideal tools for a professional use with any kind of olive trees, giving excellent results regardless of the olive ripening stages. METAL TOP has the same features as TUONO EVO except for the lower beating speed and the longer rakes stroke.

Icona Campagnola peso
Weight
1 kg
Icona Campagnola peso
Tot. Weight
1,650 kg
Icona Campagnola colture
Crops
All the cultivar
Icona Campagnola versioni
Version
TUONO EVO / METAL TOP
Icona Campagnola movimento
Movement
Opposed
Icona Campagnola aste compatibili
Compatible rods
Aluminium and carbon extension poles
Technical table
CHARACTERISTICSTUONO EVOMETAL TOP
MAX PRESSURE6 bar7 bar
AIR CONSUMPTION150 l/min200 l/min
SPEED 1800 rpm1400 rpm
WEIGHT*1,650 kg1,650 kg
TEETH OPENING22,5 cm29,5 cm
*With 200 cm carbon fixed extension pole

Other technical details

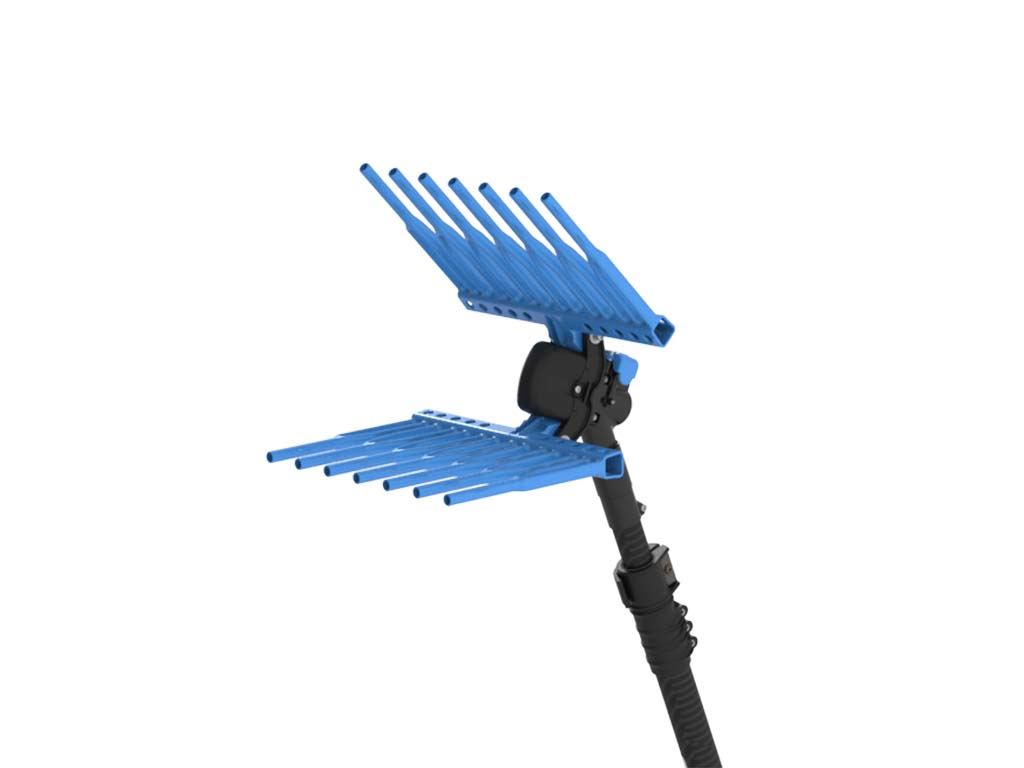

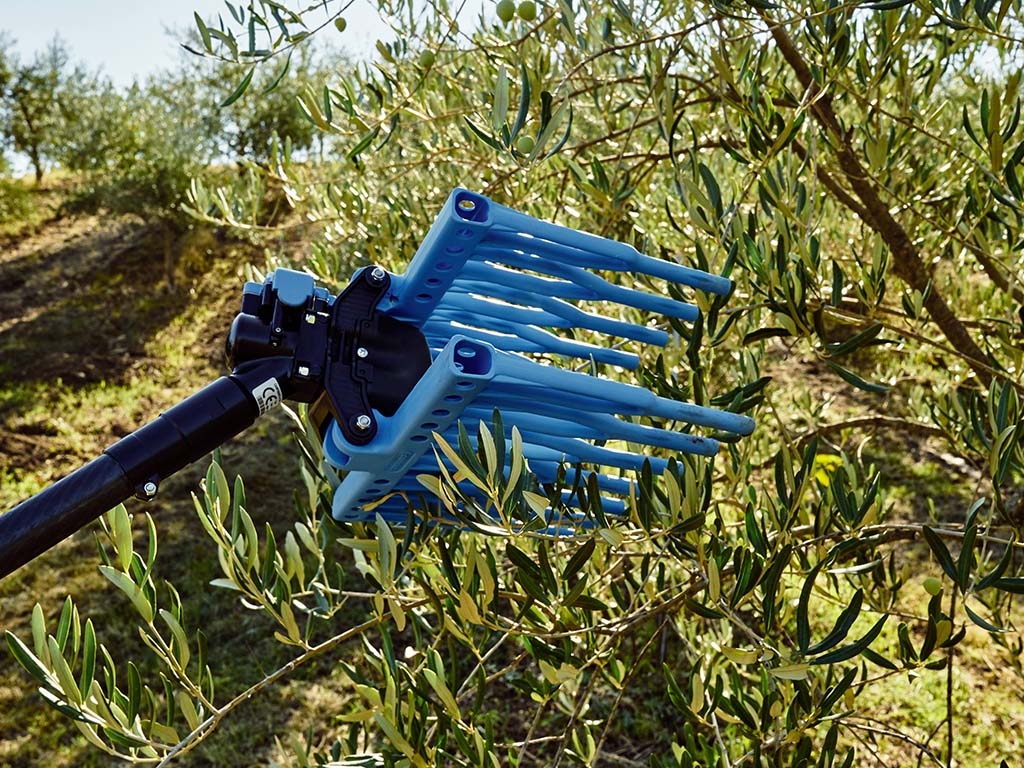

Technopolymer rakes with tune-fork-shaped teeth (Patented by Campagnola)
Protection of the moving parts to reduce their wear and tear
Short stroke: Movement system of piston and rakes (TUONO EVO)
Fixed and telescopic extension poles made of carbon or aluminium
Magnesium alloy frame to reduce the tool freezing problem
Conveyor of the exhaust air towards the transmission parts to keep them constantly lubricated and refrigerated
Included in the box

INCLUDED WITH TUONO EVO and METAL TOP

  • Baseball cap for free
Advantages
GREAT POWER AND SPEED
1800 strokes per minute
HANDINESS
The short stroke system reduces the rakes movements and ensures their excellent scrolling among the branches
EFFECTIVENESS
The tune-fork-shaped teeth guarantee excellent results in any kind of olive groves and trees.
LOW AIR CONSUMPTION
Only 150 l/min at 6 bar
