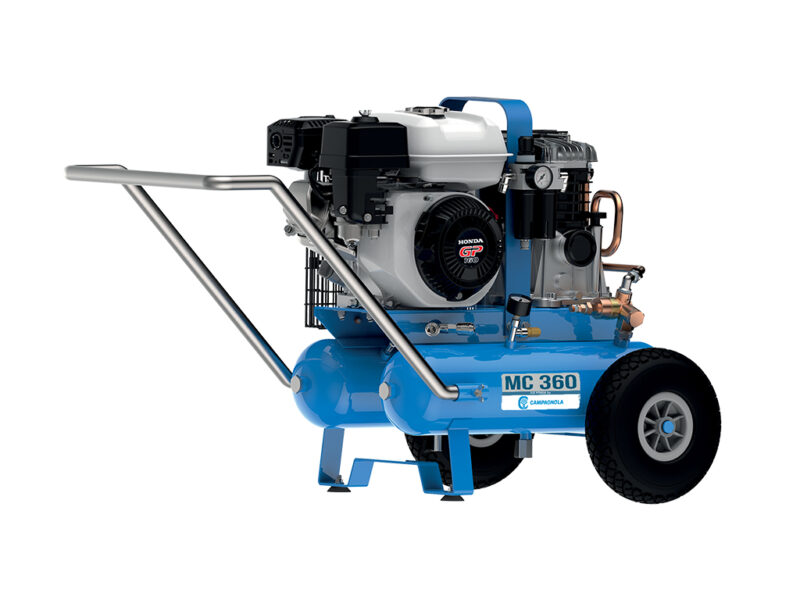

MC 360

Level of professional
Line:
PROFESSIONAL Line
Category:
Pneumatic
Product type:
Engine-driven compressors

Despite the small dimensions, it is an engine-driven compressor designed for a professional use, since it has been manufactured with high quality components. It has no use limits.

Icona Campagnola peso
Weight
55,6 kg
Icona Campagnola pressione
Pressure
9/11 bar max
Icona Campagnola aria aspirata
Intake air
320 l/min
Icona Campagnola dimensioni
Size
66x60x65 cm
Icona Campagnola alimentazione
Power supply
HONDA gasoline engine motor
Icona Campagnola capacità serbatoio
Tank capacity
9+9 l
Icona Campagnola quantità forbici
Amount of plug-in scissors
3
Icona Campagnola quantità abbacchiatori
Amount of plug-in harvesters
1/2
Description

Description

Technical table
CHARACTERISTICSMC 360 HONDA GP160 4.8 HP
AIR DISPLACEMENT320 l/min
CYLINDERS QUANTITY2
STAGES QUANTITY1
AIR TANK CAPACITY 9+9 l
MAXIMUM TANK WORKING PRESSURE9/11 bar max
DIMENSIONS 66x60x65 cm
TOTAL WEIGHT55,6 kg

Other technical details

Double tank to separate air and water and to avoid tool freezing
12 bar homologated tanks (The homologated pressure has to be higher than the working pressure)
Honda gasoline engine motor GP 160 4.8 HP
Automatic self-regulating device for the engine rpm. It accelerates or slows down the engine according to the air need, drastically reducing the consumptions
1/4” and 3/8” anti-condensation filter with pressure regulator and lubricator
Fiac or Fini or Abac head blocks
Copper hoses for a better heat dispersion
Automatic pilot valve/unloader
Included in the box

INCLUDED WITH MC 360

  • Vest for free
