MC 660

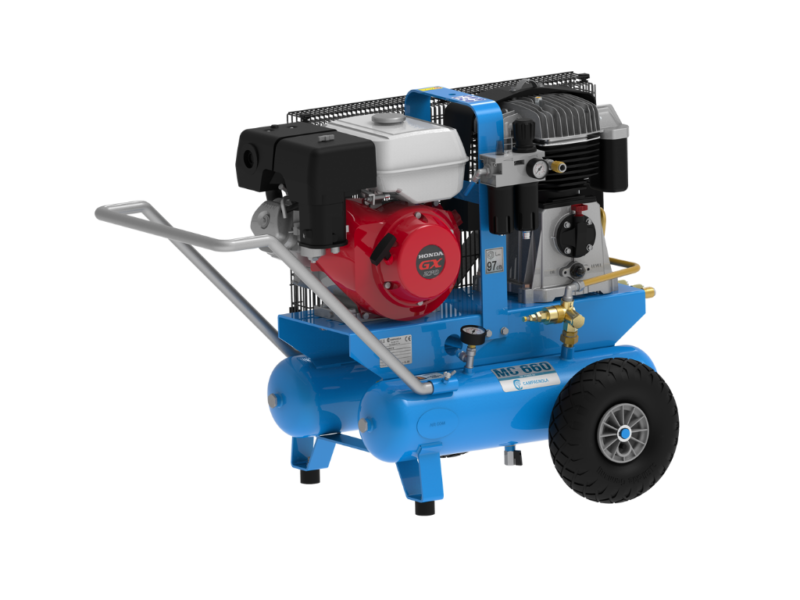

MC 660 engine-driven compressor stands out from the previous models thanks to its 8.4 HP Honda GX270 gasoline engine. Thanks to its excellent performance, it can power various tools at the same time

Icona Campagnola peso
Weight
101,8 Kg
Icona Campagnola pressione
Pressure
9/11 bar max
Icona Campagnola aria aspirata
Intake air
582 l/min
Icona Campagnola dimensioni
Size
90 x 72,5 x 81 cm
Icona Campagnola alimentazione
Power supply
GX 270 8.4 HP Honda gasoline engine
Icona Campagnola capacità serbatoio
Tank capacity
11+11 l
Icona Campagnola quantità forbici
Amount of plug-in scissors
6
Icona Campagnola quantità abbacchiatori
Amount of plug-in harvesters
3/4
Icona Campagnola quantità potatori
Amount of plug-in pruners
1
Description

Description

MC 660 has been introduced into the range of the professional engine-driven compressors by Campagnola. It is fitted with a 600-air-liter head block and HONDA engine. All engine-driven compressors by Campagnola have a 3/8” pressure regulator and lubricator filter, an automatic pilot valve and an automatic engine speed adjustment device.

MC 660 stands out for its 8.4 HP Honda GX270 petrol engine. Its double tank of 11 + 11 liters ensures a reduction of condensation and of all freezing problems.

MC 660 can power 3 harvesters on extension pole with valve, or 4 harvesters on extension pole with handle (TUONO / DIABLO 1800), or 1 chain pruner or 6 pneumatic shears.

Technical table
CHARACTERISTICSMC 660 HONDA GX 270 8.4 HP
AIR DISPLACEMENT582 l/min
CYLINDERS QUANTITY2
STAGES QUANTITY2
AIR TANK CAPACITY11 + 11 l
MAXIMUM TANK WORKING PRESSURE9/11 bar max
DIMENSIONS90 x 72,5 x 81 cm
TOTAL WEIGHT101,8 Kg
QUANTITY OF POWERED SHEARS 6
QUANTITY OF POWERED HARVESTERS 3/4
QUANTITY OF POWERED PRUNERS 1

Other technical details

Honda and Campagnola gasoline engine and Kohler / Lombardini diesel engine
Automatic self-regulating device for the engine rpm. It accelerates or slows down the engine according to the air need, drastically reducing the consumptions
1/4” and 3/8” anti-condensation filter with pressure regulator and lubricator
Made in Italy head blocks
Copper hoses for a better heat dispersion
Automatic pilot valve/unloader
Double tank to separate air and water and to avoid any tool freezing
12 bar homologated tanks (the homologated pressure has to be higher than the working pressure)
