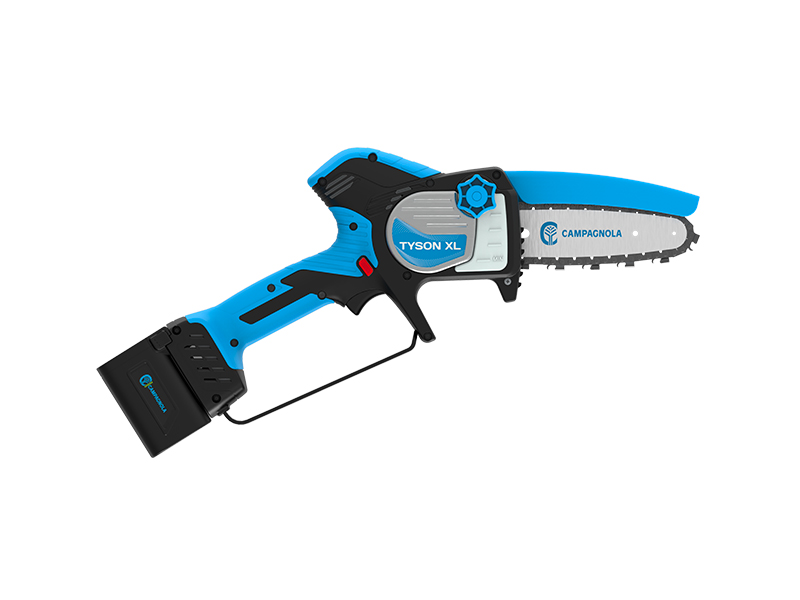

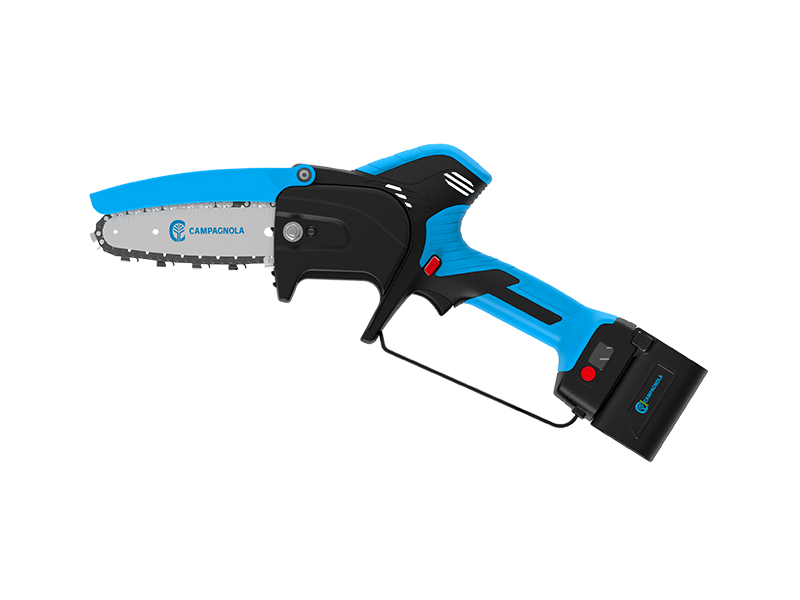

TYSON XL

Level of professional
Line:
GREEN Line
Category:
LINE 24 plug-in
Product type:
Electric pruners with plug-in battery

Electric chain pruner with 500 W brushless motor, 5″ bar, automatic lubrication and variable speed. Compatible with 140–200 cm telescopic pole for working up to around 3 m in height. Designed for professional agricultural use: orchards, vineyards, citrus and olive groves, and general plants.

Icona Campagnola batterie comprese
Batteries included
2 batteries: 4 Ah – 21,6 V
Icona Campagnola peso
Weight
1,095 kg
Icona Campagnola velocità catena
Chain speed
10 m/sec
Icona Campagnola diametro taglio
Cutting Ø
12 cm
Icona Campagnola barra
Bar
5''
Icona Campagnola catena
Chain
1/4'' - 34 links
Icona Campagnola peso con batteria
Weight with battery
1,565 kg
Icona Campagnola potenza
Power
500 W
Icona Campagnola batteria
Battery
Li-Ion plug-in
Icona Campagnola colture
Crops
Orchards, vineyards, citrus and olive groves, and general plants
Icona Campagnola tagli
Cuts
140
Icona Campagnola tempo di ricarica
Charging time
3 h x battery
Icona Campagnola aste compatibili
Compatible rods
140–200 cm telescopic pole
Description

Description

Tyson XL by Campagnola is the professional pruner designed to guarantee even higher performance. Thanks to a nominal voltage of 21.6 V and a 4 Ah lithium battery, it offers constant power and long autonomy, ideal for tackling even the most demanding jobs.
With a cutting diameter of up to 12 cm and a range of around 140 cuts per charging cycle, Tyson XL ensures efficiency and continuity. The 1/4” chain with 34 links, which reaches a speed of 10 m/sec on the 5” bar, allows quick and precise cuts, reducing operator effort to a minimum.
Despite its superior power, the Tyson XL maintains excellent handling: with a weight of just 1.5 kg (battery included) it confirms itself as the ideal tool for those looking for a perfect balance between strength, comfort and reliability. Furthermore, it is compatible with the 140-200 cm extension rod, which allows you to work easily even on high branches without the need for ladders.

Technical table
CHARACTERISTICSTYSON XL
CUTTING Ø*12 cm
BATTERYLi-Ion plug-in
RATED VOLTAGE21,6 V / (25,2 V MAX)
CAPACITY4 Ah
CUT QUANTITY (Ø 8 CM) Battery 4 Ah: 140 cuts
RECHARGE TIME3 h x battery
POWER500 W
CHAIN1/4’’ - 34 links
CHAIN SPEED10 m/sec
BAR5''
WEIGHT WITH BATTERY1,565 kg
WEIGHT W/O BATTERY1,095 kg
*Depending on wood type

Other technical details

ON/OFF button
LCD display
Non-slip handle with safety switch
Safety protection against kickback
500 W brushless motor
5” guide bar – 1/4” chain (34 links)
Oil reservoir with automatic lubricator
Trigger, variable speed
Plug‑in battery: 2 batteries included
Included in the box

THE TYSON XL KIT INCLUDES:

  • Pruner
  • 2 batteries (21.6 V – 4 Ah)
  • Battery charger with triple output

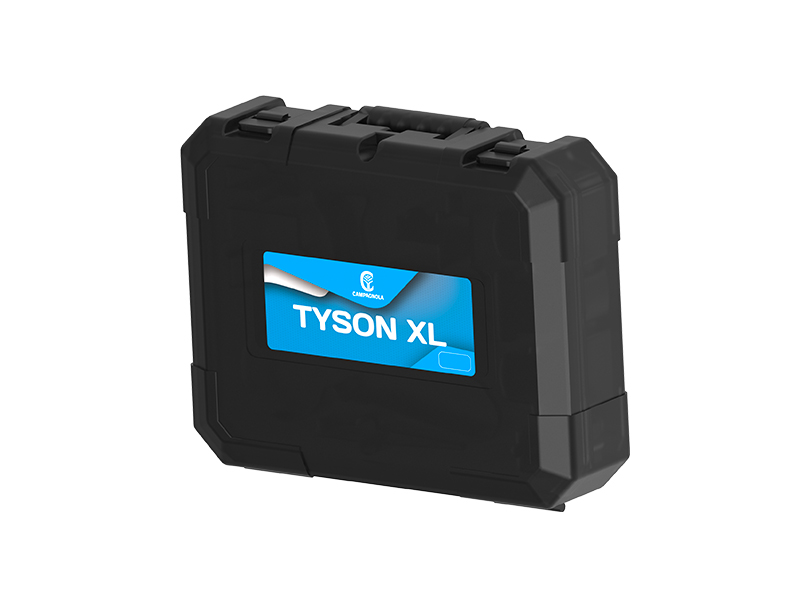

  • Carrying case
  • Tool kit
  • Bar cover
Advantages
LIGHTWEIGHT
Compact, well‑balanced weight: 1.0 kg without battery / 1.3 kg with battery.
POWERFUL
500 W brushless motor. Enables fast, precise cuts up to Ø 12 cm.
VERSATILE
Compatible with 140–200 cm telescopic pole.
HIGH‑PERFORMANCE
The automatic lubrication system ensures smooth chain operation.
Documents
Products and Accessories

Compatible

CABLE AND HOLSTER FOR BELT BATTERY

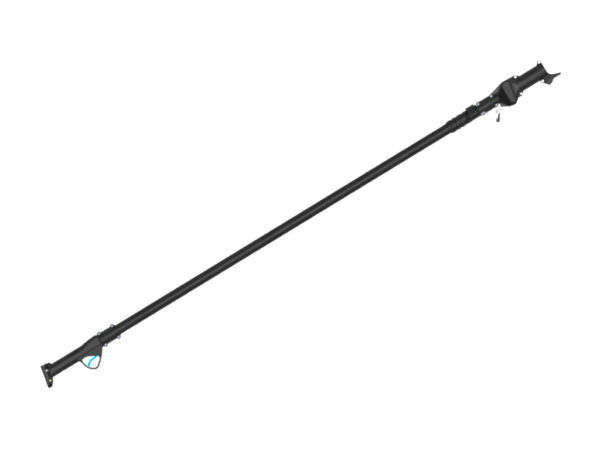

The cable for the tools of the GREEN Line allows the operators to remove their plugged-in battery and to put it into the special belt holster. This further decreases the tool weight. It is a patent of Campagnola. The unit cannot be used with SPEEDY.
