HERCULES 58 and HERCULES ECO

Level of professional
Line:
PROFESSIONAL Line
Category:
Electric
Product type:
Harvesters

Hercules 58 is a top tool of the Campagnola electric harvesters range thanks to its excellent performance. It is the ideal harvester for a professional use with big and dense-foliage olive-trees.

Icona Campagnola peso
Weight
0,948 kg
Icona Campagnola peso
Tot. Weight
2,118 kg
Icona Campagnola alimentazione
Power supply
Battery
Icona Campagnola potenza
Power
350 W
Icona Campagnola batteria
Battery
Li-ion
Icona Campagnola voltaggio
Battery voltage
12/58 V
Icona Campagnola colture
Crops
Dense-foliage olive-trees
Icona Campagnola velocità
Speed
1080-1150-1180 rpm
Icona Campagnola versioni
Version
HERCULES ECO / HERCULES 58
Icona Campagnola movimento
Movement
Elliptical
Icona Campagnola aste compatibili
Compatible rods
Carbon, telescopic or fixed
Description

Description

Technical table
CHARACTERISTICSHERCULES ECOHERCULES 58
MOTOR MAX POWER325 W350 W
SPEED1200 rpm1080-1150-1180 rpm
VOLTAGE12 V12/58 V
POWER CONSUMPTION7/8 Ah3/4 Ah (58 V)
WEIGHT* 2,198 kg2,118 kg
*With 170 cm carbon fixed extension pole

Other technical details

Speed selector(1080-1150-1180 strokes per minute)
ON/OFF switch
Carbon telescopic or fixed extension poles, from 45 to 270 cm
Interchangeable technopolymer or carbon highly resistant teeth
Technopolymer structure with carbon fibres
Brushless motor, 58 V–350 W, with electronic drive
Electronic circuit board with built-in protections for driving the motor
Tearproof handle for the power-supply cable
Included in the box

THE HERCULES 58 KIT IS COMPOSED OF

  • HERCULES harvesting head
  • Power 58 unit with Brushless motor, power saver and electronic driver
  • 13 m electric cable with DC-DC converter
  • Free vest



THE HERCULES ECO KIT IS COMPOSED OF

  • HERCULES harvesting head

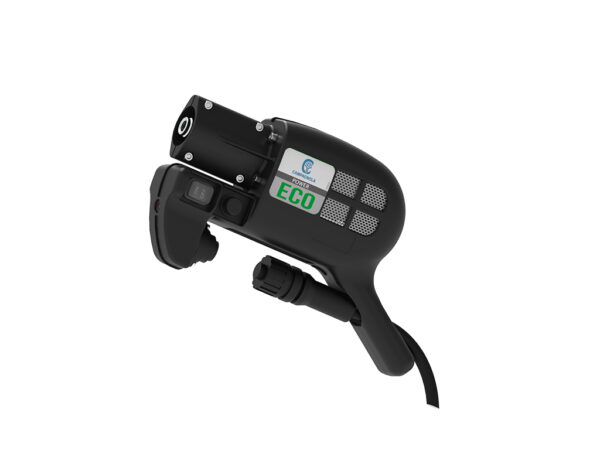

  • Power ECO unit with brushed motor, without power saver and electronic driver
  • 13 m power supply cable
  • Free vest
Advantages
ELECTRONIC (DISCONNECTABLE) POWER SAVER
It automatically slows down or increases the rakes speed according to the idling or working phase (as soon as the teeth touch the branches)
TWO CONSTANT RAKES SPEEDS
1080 or 1150 strokes per minute constant rate, thanks to the electronic drive of the motor, even when the battery voltage decreases
DOUBLE POWER-SUPPLY POSSIBILITY
By means of a backpack lithium battery or a car lead battery (80/90 Ah–12 V) for Hercules 58, and exclusively by means of a car lead battery (80/90 Ah–12 V) for Hercules Eco
FLEXIBLE POWER-SUPPLY CABLE
Made of polyurethane, 13 m
LONG INTERCHANGEABLE CARBON TEETH
They allow an excellent penetration among the branches
LIGHTNESS
The harvesting head weighs only 0.948 kg
GREAT HARVESTING CAPACITY
Excellent performance in all harvesting conditions, also with big-seized or dense-foliage trees
LOW MAINTENANCE COSTS
BRUSHLESS MOTOR WITHOUT ANY NEED FOR MAINTENANCE
Accessories

Compatible

LI-ION 700

Li-Ion 700 is a Lithium-Ion battery with electronic drive of its protection and power supply systems. It has an excellent weight to autonomy ratio and can operate all the electric harvesters as well as the electric chain pruner Kronos of the Line 58. Li-Ion 700 has no memory effect and is recharged by means of the completely automatic battery charger provided.
